APR Wheel Spacers and Lug Bolts
Wheel Spacers (24 Different Sets)
Lug Bolts (8 Different Sets)
APR’s Wheel Spacers physically move the wheel further away from the hub. In doing so, they give your wheels the desired offset needed to create the stance or look you desire, or clearance necessary to clear brake calipers. When using wheel spacers, longer bolts are required and are provided below.
Quick Facts:

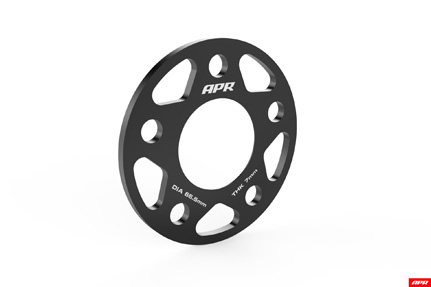

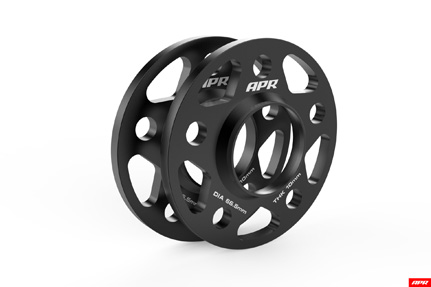

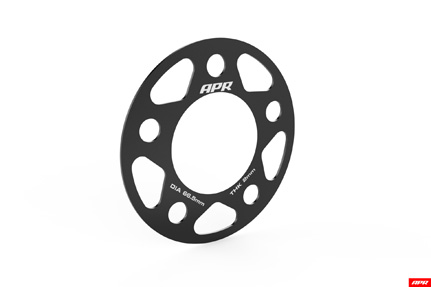

- Spacers
- CNC-machined aluminum
- Weight saving design
- 66.5mm and 57.1mm center bore configurations
- 5x112 bolt pattern
- 2mm – 20mm sizes
- Hub-centric rings on larger spacers
- Anodized black
- Set of 2

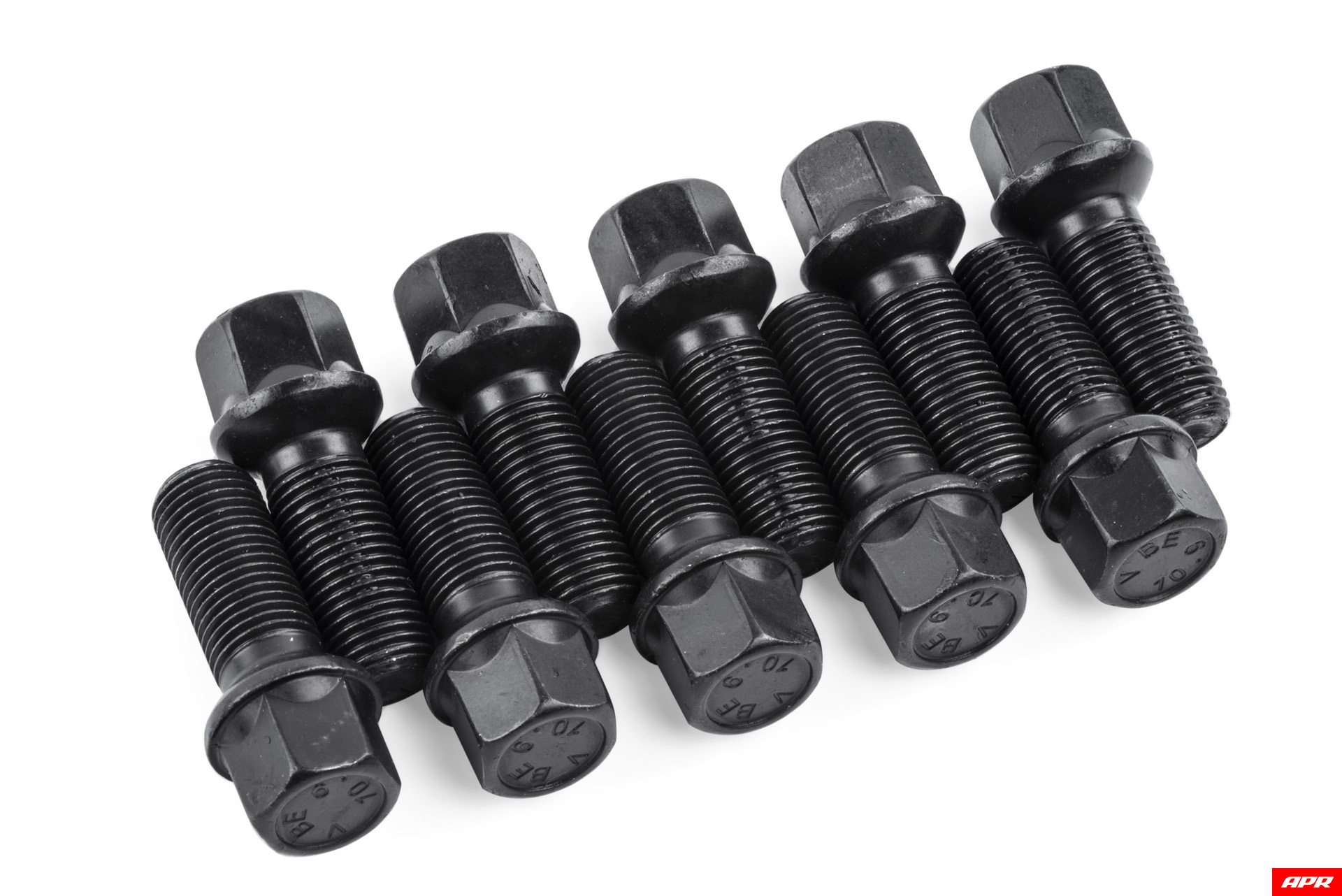

- Lug Bolts
- Steel construction
- OEM-style ball-seat lug bolt
- 27mm – 47mm lengths
- Black zinc coating
- Set of 10
20mm Spacers
57.1mm Center-Bore
66.5mm Center-Bore
This spacer will only fit vehicles with wheel centering features that protrude 17.7mm or less from hub mounting face
17mm Spacers
57.1mm Center-Bore
66.5mm Center-Bore
This spacer will only fit vehicles with wheel centering features that protrude 14.7mm or less from hub mounting face
15mm Spacers
57.1mm Center-Bore
66.5mm Center-Bore
This spacer will only fit vehicles with wheel centering features that protrude 12mm or less from hub mounting face
12mm Spacers
57.1mm Center-Bore
66.5mm Center-Bore
This spacer will only fit vehicles with wheel centering features that protrude 12mm or less from hub mounting face
10mm Spacers
57.1mm Center-Bore
66.5mm Center-Bore
This spacer will only fit vehicles with wheel centering features that protrude 12mm or less from hub mounting face
8mm Spacers
57.1mm Center-Bore
66.5mm Center-Bore
7mm Spacers
57.1mm Center-Bore
66.5mm Center-Bore
6mm Spacers
57.1mm Center-Bore
66.5mm Center-Bore
Due to B9 chassis design, spacers less than 7mm are not hub centric.
5mm Spacers
57.1mm Center-Bore
66.5mm Center-Bore
Due to B9 chassis design, spacers less than 7mm are not hub centric.
4mm Spacers
57.1mm Center-Bore
66.5mm Center-Bore
Please note: We provide a chamfer on our wheel spacers so they can fit on the factory chamfered hubs. Because of this, the inner diameter on this spacer will actually be larger than the specified amount. However, you still need to choose the correct center bore for your application, (57.1 mm or 66.5 mm). Due to B9 chassis design, spacers less than 7mm are not hub centric.
3mm Spacers
57.1mm Center-Bore
66.5mm Center-Bore
Please note: We provide a chamfer on our wheel spacers so they can fit on the factory chamfered hubs. Because of this, the inner diameter on this spacer will actually be larger than the specified amount. However, you still need to choose the correct center bore for your application, (57.1 mm or 66.5 mm). Due to B9 chassis design, spacers less than 7mm are not hub centric.
2mm Spacers
57.1mm Center-Bore
66.5mm Center-Bore
Please note: We provide a chamfer on our wheel spacers so they can fit on the factory chamfered hubs. Because of this, the inner diameter on this spacer will actually be larger than the specified amount. However, you still need to choose the correct center bore for your application, (57.1 mm or 66.5 mm). Due to B9 chassis design, spacers less than 7mm are not hub centric.
Lug Bolts (7 sizes)
| Part Number | Size | Spacer |
|---|---|---|
| MS100171 | 27mm | OEM Size No Spacer |
| MS100172 | 30mm | 2mm & 3mm Spacer |
| MS100173 | 32mm | 4mm & 5mm Spacer |
| MS100174 | 35mm | 6mm, 7mm & 8mm Spacer |
| MS100175 | 37mm | 10mm Spacer |
| MS100176 | 40mm | 12mm Spacer |
| MS100177 | 45mm | 15mm & 17mm Spacer |
| MS100186 | 47mm | 20mm Spacer |
| Product | Quantity | Part Number | Price | |
|---|---|---|---|---|
